Yanzeo SR160 125kHz SR180 13.56MHz HF USB Smart IC ID RFID Card Reader for Windows 2000/XP/WIN 7/Win10/Vista/Android HS963

Basic parameters
Name:SR180 IC Reader/SR160 ID RFID Reader

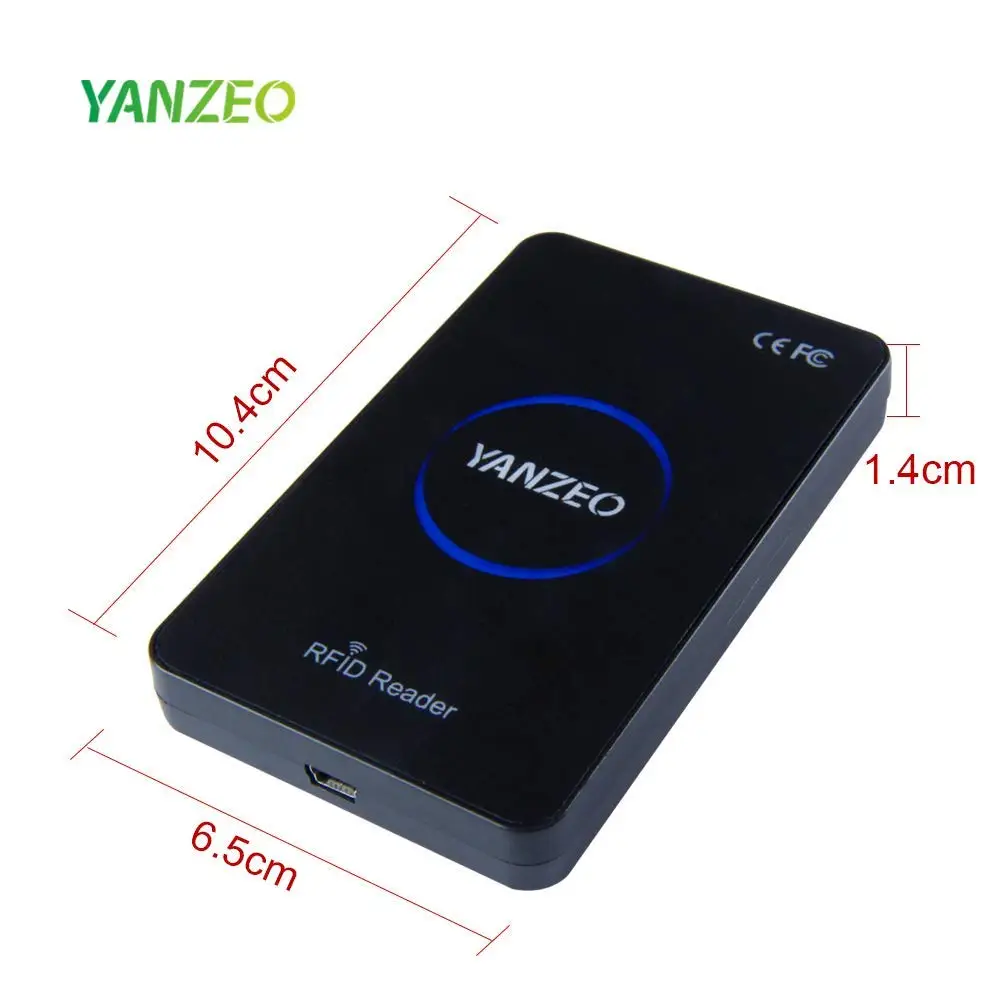

Dimension:105mm×65mm×15mm
Support Cards:For Mifare one S50,S70
Frequency:SR180 13.56MHz/SR160 125kHz
N.W.:100G
Status Indication:2PC LED (Red means standby, Green means reader success)
Operating System:Windows XP\7\Linux\Android
Reader Time:<0.5s
Power Supply:+5V DC
Consumed Current:100mA
Operating Distance:0~80mm
Interface:USB
Service Temperature:-10℃ ~ +70℃
Store Temperature:-20℃ ~ +85℃

Instructions for use
Reader connect the computer through USB directly.
Open Notepad or a word document.
The mouse in Notepad or WORD document clicking.
put card on the top of reader.
Notepad or word documents will output of the IC card number.
When Reading one card, LED lights turns red into the Blue.

Method of connect the PC
Reader connect the computer, and open the “Device manager” of PC. If the options menu has appear “Human Input Device”, that means the RFID reader connection is successful.

Precautions
There are many factors that will affect the readering distance. Such as different environment, different cards etc.

Mouse to avoid transferring data errors when reader work.

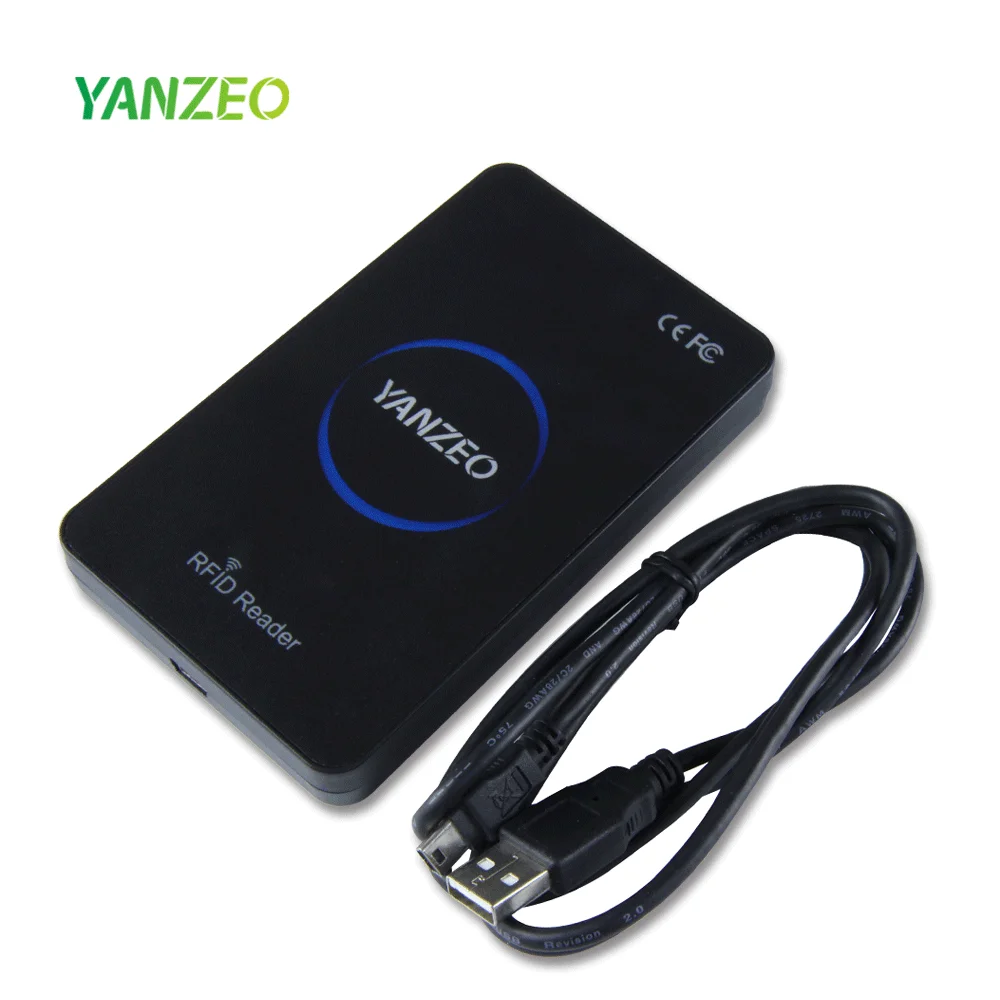

Package Included:

1 x Card RFID Reader
1 x USB Cable
