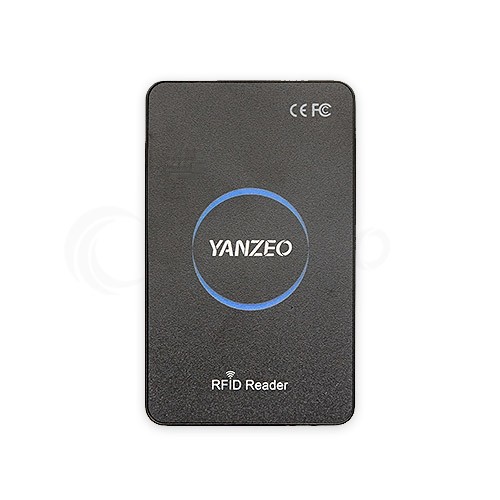

Yanzeo SR360 865Mhz~915Mhz Desktop UHF RFID Card Reader with Keyboard Emulation Output Access Control System POS
Yanzeo SR360 865Mhz~915Mhz Desktop UHF RFID Card Reader with Keyboard Emulation Output Access Control System POS
Availability: In stock
$88.00
- Buy 10 for $86.50 each and save 2%
- Buy 50 for $85.00 each and save 4%
- Buy 200 for $83.00 each and save 6%
Details
Details
Yanzeo SR360 865Mhz~915Mhz Desktop UHF RFID Card Reader with Keyboard Emulation Output Access Control System POS
Can not writ UHF RFID Card，Only Read.
Yanzeo SR360 is a small desktop reader. The card issuer is plugged in and
used without driver. It has superior anti-interference ability; ABS industrial
grade casing; rich interface; and can be customized. Compatible with ISO
18000-6C and ISO 18000-6B standards, its working frequency is 902MHz ~
928MHz, small integrated reader for short-distance identification or
background card issuer management, small size, easy to carry, suitable for
personnel access control, pictures Document management, as well as
background reading, writing, authorizing, formatting, etc. .
Application areas:
Logistics and warehousing management: item flow and warehousing
management and flow management of mail, parcels, transport baggage, etc.;
Intelligent parking lot management: parking lot management and charging
automation;
Production line management: identification of the production process fixed
point;
Product anti-counterfeiting detection: use the in-tag memory write protection
function to identify the authenticity of the product;
Other areas: in the club management, library, student status, consumption
management, attendance management, dining management, pool
management and other systems have been widely used.
Product Features:
Small and square shape, suitable for indoor desktop placement;
USB interface, no need to drive, USB virtual keyboard cursor input.
Fast data read rate;
Multi-zone multi-label reading;
Multi-protocol compatibility;
Yanzeo SR3308 Passive Portable Desktop Card Issuer
Specification:
Functions
Operating Frequency
International（920～925MHz）
USA (902 ~ 928MHz)
Others（Customized Tag）
Protocol ISO18000‐6C(EPCGEN2)
ISO18000‑6B
Frequency Hopping
Mode
Fixed Frequency Band and FHSS Software Programmable
Antenna 2dBi circular polarize antenna （Integrated）
Output Power 0dBm～30dBm（Adjustable）
Read/Write Range Max Read Range：0.5m, Max Write Range：0.2
Distance depends on Reader&Antenna output Power
Operating Mode
Master‐Slave Mode（Online Mode）
Time Scheduled Modes
Trigger Mode
Connecting Ports
Power 12V
Communication Port
USB
10/100M Ethernet，GPRS.WIFI（for Customized Model only）
Trigger 1xTriggerLevelInput
General Purpose 2xGPIO
Operating Environment
Operation -20℃~ 60℃
Storage -45℃~ 85℃
Physical Parameter
Dimension 170mm×105mm×42mm
Weight 0.3Kg
Accessories
Power Supply USB 12V
Cables Power Cable
RS232SerialCable
Brackets Pole Mount Adapter
Software
Pack(Optional)
API Software Development Kits complete with VB,C#Sample Program
Warranty policy:
Each of Yanzeo RFID Reader will have a 12 months warranty
