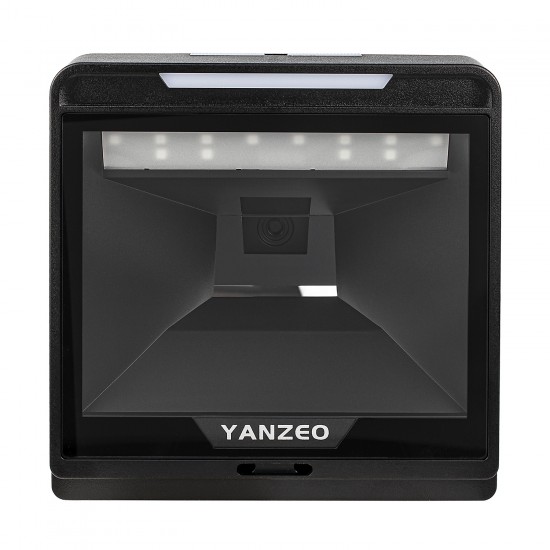

Yanzeo YS868i USB RS232 1D/2D Desktop Automatic High Speed Omnidirectional Directional Barcode Scanner for Supermarket Store POS

Yanzeo YS868i Desktop Automatic High Speed Omnidirectional Directional USB 1D Barcode Scanner RS232 20 Scan Lines

Suit for all POS systems and machine.
Blue and Red LED indicator,double buzzer.
Plug and play, not need any driver, easy to operate.
Anti-Scraping protection glass large window design.
The appearance is novel, fashionable and founder.
Supports auto-sleep and quickly wake-up functions.
20 scan lines with 5 directions at rate of 1650 scans per second.
Compatibility WindowsXP, Windows7,Windows8,Windows10,ISO etc.

Application area:

Mainly used in large supermarkets, shopping malls,speciality stores,etc.(pharmacy, clothing stores, tobacco, hotels)

OPERATIONAL PARAMETER

Light Source                 650nm visible laser diode (VLD)

Depth of Field(DOF): 4mil:10-50mm,5mil:0-90mm, 7.5mil:0-170mm,10mil:0-220mm,13mil:0-240mm

,20mil:0-300mm   Note: DOF May vary depending on environment condition and barcode quality

Scan Lines:                20

Scan Rate:               1650 times per second

Minimum Resolution       0.1mm(4mil)@ Code39, PCS=90%

Print Contrast:             More than 30% @ UPC/EAN 100%

Visual Indicator:            Two color LED （Blue ,Red）

 Beeper Operation           Programmable tone & Volume

PHYSICAL CHARACTERISTICS

Dimension H x W x L:           150mm*75mm*150 mm

Weight                       490g (without cable), lightweight to save shipping cost.

Material                      ABS + PC

Cable                       Standard 1.8M straight

POWER PARAMETER

Input Voltage                  5VDC±10%

Working corrent               220mA

SAFETY REGULATORY

Laser Class                 CE EN55022 B, FCC Part 15 Class B, VCCI, BSM I

EMC                        CDRH Class IIa, IEC 60825-1 Class 1

ENVIRONMENTAL  PARAMETER

Operating Temperature        0°C to 50°C

Storage Temperature          -20°C to 60°C

Working Humidity             5% to95% relative humidity, non-condensing

Light Levels                  0~4,000Lux（Fluorescence），0~100,000Lux（sunlight）

Drop Durability                Designed to withstand 1M drops

DECODE CAPABILITY

UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded
