Yanzeo SI804 15M-30M Long Range 12dbi Antenna 4G UHF RFID Reader RS232/RJ45/ Wiegand UHF RFID Reader + Free SDK(Demo) Network Port
● 30M Long Range UHF Integrated Reader ● High Performance Yanzeo RFID Chip ● RS232/RS485/Wiegand (RJ45 WIFI 4G Optional) ● Waterproof, Durable ,Rugged UHF RFID Reader ● Easy To Develope And Deploy Using Http
SI804:4G
Yanzeo SI804 is a high-performance linear polarized antenna UHF reader compatible with ISO 18000-6C and ISO 18000-6B standards. Its operating frequency is 902MHz ~ 928MHz, excellent read and write performance, especially suitable for reading high-speed mobile label. The reader meets a variety of application needs, especially for community, parking vehicle management, highway non-stop charging and logistics management.
Application areas:
Logistics and warehousing management: item flow and warehousing management and flow management of mail, parcels, transport baggage, etc.;
Intelligent parking lot management: parking lot management and charging automation;
Production line management: identification of the production process fixed point;
Product anti-counterfeiting detection: use the in-tag memory write protection function to identify the authenticity of the product;
Other areas: in the club management, library, student status, consumption management, attendance management, dining management, pool management and other systems have been widely used.
Product Features:
The power is small, the reading and writing distance is stable and reliable;
Fast data read rate;
Label wakeup recognition;
Multi-zone multi-label reading;
Directional tag data writing;
Multi-protocol compatibility;
Waterproof design;
Yanzeo SI802 Passive UHF Reader Technical Parameters
Functional Characteristics | |
Working Frequency: | National standard (920 ~ 925MHz) |
American Standard (902 ~ 928MHz) | |
Other multinational frequency standards (customized) | |
Label Agreement: | ISO18000-6C (EPC GEN2) |
ISO18000-6B | |
Frequency Hopping Mode: | Broadband frequency hopping (FHSS) or fixed frequency, which can be set by software; |
Antenna Parameters: | 12dBi linear polarized antenna (built-in) |
Output Power: | 0dBm ~ 30dBm (software adjustable) |
Read And Write Distance: | Maximum distance of reading tags: 25m (related to factors such as transmit power, antenna type, tag type and application environment) |
Write tag maximum distance: 6m (related to factors such as transmit power, antenna type, tag type and application environment) | |
Working Mode: | Active mode |
Passive mode | |
Answer mode (not recommended) | |
External Interface | |
Power Interface: | DC +12V |
Communication Interface: | RS-232 interface, RS-485 interface |
Wiegand interface: support Wiegand 26, Wiegand 34 | |
10/100M Ethernet interface | |
WIFI,GPRS(customized) | |
Trigger Interface: | 1 trigger level input |
GPIO Interface: | 2 GPIO outputs (requires customization) |
Working Environment | |
Working Temperature: | -20℃~60℃ |
Storage Temperature: | -40℃~85℃ |
Physical Parameter | |
Size: | 450mm×450mm×120mm |
Weight: | 5Kg |

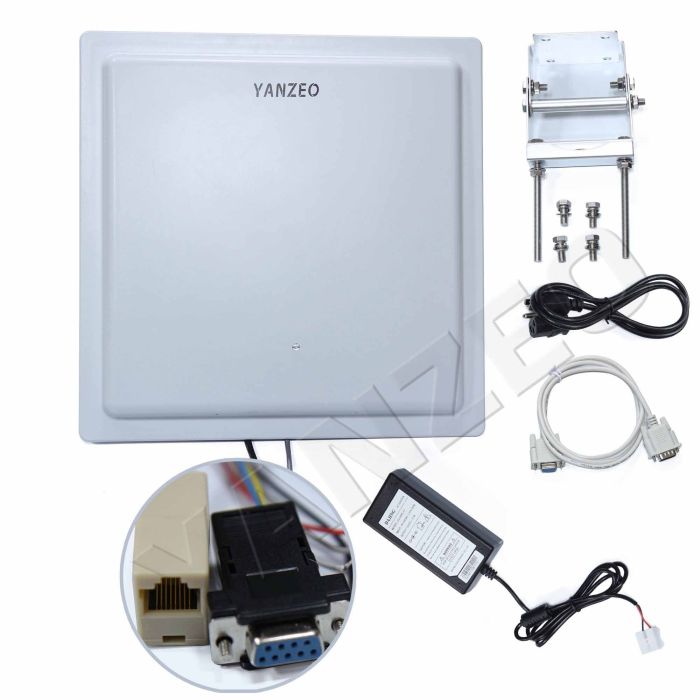

Annex | |
Power Adapter: | AC 110 ~ 220V / DC +12V |
Power Cable: | Equipped |
RS-232 Signal Cable: | Equipped |
Mounting Bracket: | Pole mounting fixture |
Development Kit: | Provide VS, Android SDK |
