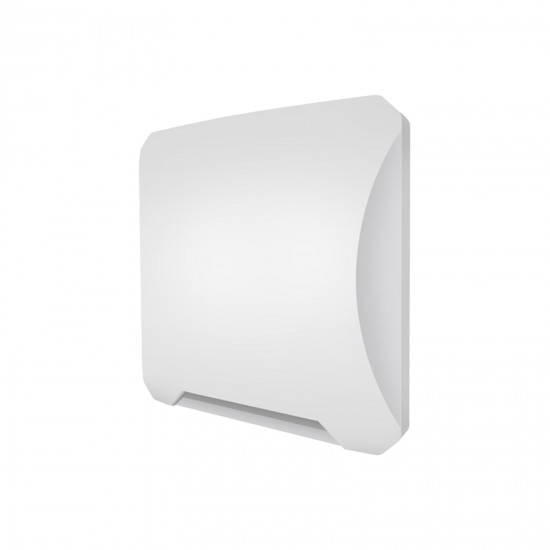

YANZEO SA810 Long Range UHF UDP MQTT RFID Reader
In stock
SKU
SA810
Quick Overview
● Circular Polarize Antenna 25M Long Range Reader
● Supports UDP Http MQTT RS485, WG26/34, USB interfaces for easy integration.
● Yanzeo S710 High Performance UHF Module
● Integrated reader with IP65 waterproof rating for outdoor use.
● Ideal for parking gate systems and other access control applications.
The YANZEO SA810 UHF RFID Reader is a powerful long-range reader designed for parking gate access control systems. With a read range of up to 25 meters (98 feet) and a high-gain Circular Polarize Antenna , this reader can reliably identify and track RFID tags from a considerable distance.
Its versatile communication interfaces, including RS485, Wiegand26/34, and USB, allow seamless integration with various access control systems and peripherals. Whether you need to manage vehicle access in a parking facility or monitor asset movements in a warehouse, the SA810 UHF RFID Reader offers a robust and efficient solution.
Its rugged construction ensures reliable performance in demanding environments, while its user-friendly design simplifies installation and maintenance.
ITEMS | DESCRIPTION |
Model： | SA810 |
System Parameter： | ARM7 |
Operating Frequency：
| International（920～925MHz） |
USA（902～928MHz） | |
EUR(865～868MHz) | |
Others（Customized Tag） | |
Read Range： | >25m |
Group of reading performance： | >200pcs |
Support Protocol： | ISO18000-6C（EPC GEN2） |
Frequency Hopping Mode： | Fixed Frequency Band and FHSS Software Programmable； |
Operating Mode： | Master‐Slave Mode（Online Mode）、Time Scheduled Modes、Trigger Mode |
Output Power： | 0-33dBm（Adjustable） |
Antenna： | 9dBi circular polarize antenna （Integrated） |
Communication Port： | RS485、Wiegand26、Wiegand34、USB、adjustable WIFI、RJ45、GPRS |
Power： | +12V |
Prompt： | Beep or LED light flash |
Power Consumption： | < 12W |
OPERATING ENVIRONMENT | |
Operation： | －20℃ ～ +70℃（Customized） |
Humidity： | 20％ ～ 95％（without condensation） |
Storage： | －40℃ ～ +70℃ |
PHYSICAL PARAMETER | |
Dimension： | 260*260*70MM/355*260*80MM |
Net Weight： | 2400G |
Weight： | 3700G |
ACCESSORES | |
Software Pack (Optional)： | API Software Development Kits complete with VB,C#Sample Program |
