The Yanzeo SA810 is a powerful long-range UHF RFID reader engineered for parking gate systems, warehouse automation, and enterprise logistics. Designed with an integrated 9dBi circular polarized antenna and rugged IP65 housing, it delivers outstanding read performance and reliable operation even in challenging outdoor environments.
Operating across the 860–960 MHz frequency band, the SA810 supports both ISO18000-6C (EPC Gen2) and ISO18000-6B protocols, ensuring maximum compatibility and flexibility for enterprise applications.
Key Features
Extended Reading Distance: Detects RFID tags at ranges over 25 meters
High-Speed Tag Processing: Reads over 200 tags per second
Multi-Interface Connectivity: RS485, USB, RJ45, Wiegand 26/34, adjustable WiFi
Supports Multiple Protocols: HTTP, MQTT, TCP, UDP for IoT and cloud integration
Rugged & Reliable: IP65-rated waterproof housing for outdoor use
Smart Operating Modes: Master-Slave (Online), Scheduled, and Trigger modes
Adjustable Output Power: 0–33 dBm for precise control of read range
Efficient Power Usage: Operates on +12V with <12W power consumption
What’s Included
Yanzeo SA810 UHF RFID Reader (with built-in antenna)
RS485 and USB connection cables
SDK with VB/C# sample programs
User guide and installation manual

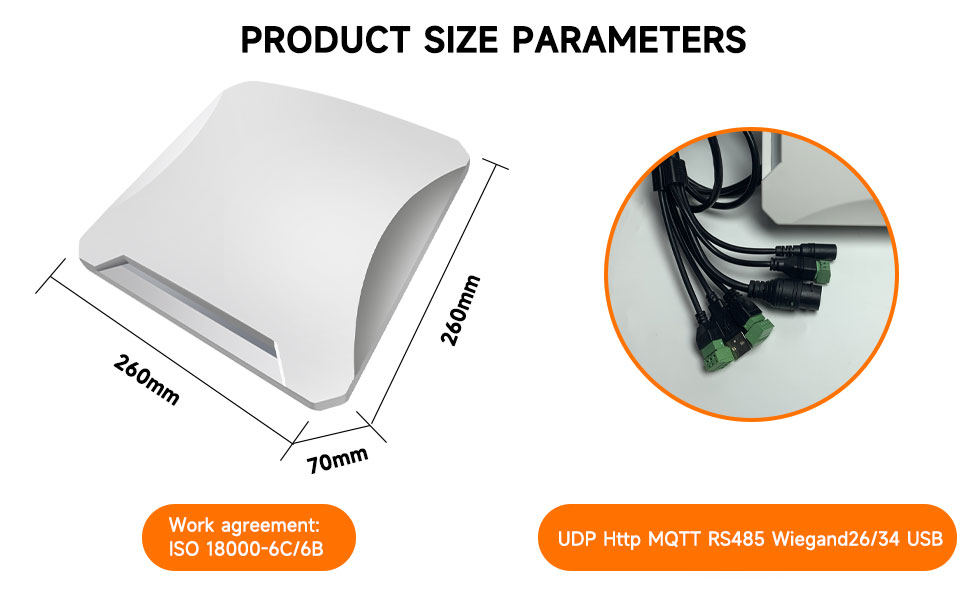

Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Range | 860–960 MHz (Region-specific options) |
| Supported Protocols | ISO18000-6C (EPC Gen2), ISO18000-6B |
| Read Range | Over 25 meters |
| Tag Reading Capacity | >200 tags/second |
| Output Power | 0–33 dBm (adjustable) |
| Antenna | Integrated 9dBi circular polarized |
| Power Supply | +12V DC |
| Power Consumption | <12W |
| Interfaces | RS485, USB, RJ45, Wiegand 26/34, WiFi |
| Communication Protocols | HTTP, MQTT, TCP, UDP |
| Operating Modes | Master-Slave, Scheduled, Trigger |
| Prompt Mechanism | Buzzer / LED |
| Protection Rating | IP65 Waterproof |
Typical Applications
Parking gate and vehicle access control
Warehouse entry and logistics tracking
Retail supply chain and asset tagging
Smart factory production line automation
Inventory and file management
Conclusion
The Yanzeo SA810 UHF RFID reader offers a robust, flexible, and intelligent solution for businesses seeking long-range RFID capability. With seamless connectivity, durable construction, and high-performance tag recognition, the SA810 is ideal for both indoor and outdoor deployments in security, logistics, and automation sectors.
Need to modernize your access or tracking system?
Contact Yanzeo to discover how the SA810 can improve operational efficiency and reliability.
