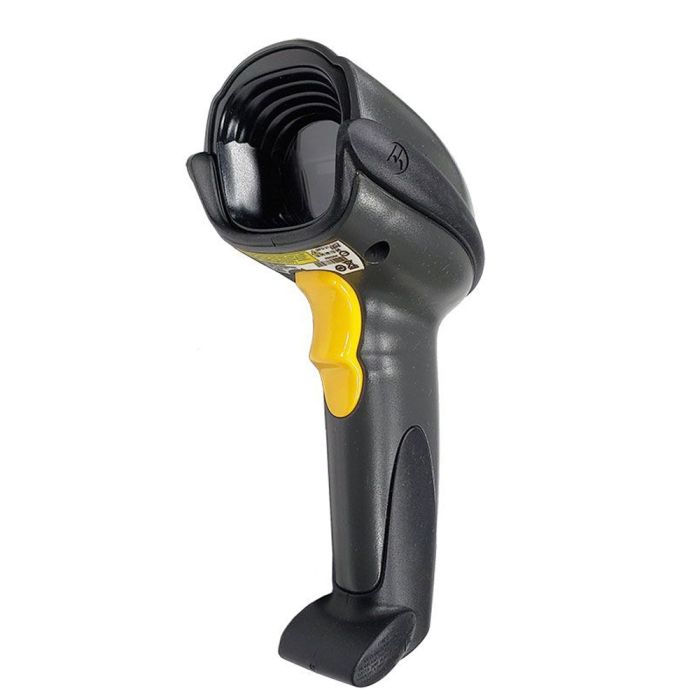

Motorola Symbol DS6707-DC20007ZZR DS6707 DS6707-SR Standard-Range Handheld 1D 2D Imager QR Barcode Scanner

Symbol DS6707-DC - SCANNER ONLY, 2D Imager, Document Capture capability. Color: Black.
Imager, Camera and Document Scanner in One!
The handheld DS6707 combines a 1D/2D barcode scanner with a 1.3 megapixel digital camera and a high performance document capture scanner in a single cost-effective device, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. True point-and-shoot image capture with Symbol's text enhancement technology delivers superior document clarity, even on fine print. The DS6707 reduces capital and operating expenses by eliminating the need to purchase separate devices to capture images and read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.

Technical Information
Barcode Dimension:
1D
2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
UPC/EAN
UPC/EAN with Supplementals
UCC/EAN 128
JAN-8
JAN-13
Code 39
Trioptic Code 39
Code 128
Code 128 Full ASCII
Codabar (NW1)
Interleaved 2 of 5
Discrete 2 of 5
Code 93
Bookland EAN
IATA
Code 32
RSS Variants
PDF 417
Micro PDF417
MaxiCode
DataMatrix
QR Code
U.S. Postnet
U.S. Planet
U.K. Postal
Japanese Post
Australian Post
Dutch Postal
UPC/EAN
UPC/EAN with Supplementals
UCC/EAN 128
JAN-8
JAN-13
Code 39
Trioptic Code 39
Code 128
Code 128 Full ASCII
Codabar (NW1)
Interleaved 2 of 5
Discrete 2 of 5
Code 93
Bookland EAN
IATA
Code 32
RSS Variants
PDF 417
Micro PDF417
MaxiCode
DataMatrix
QR Code
U.S. Postnet
U.S. Planet
U.K. Postal
Japanese Post
Australian Post
Dutch Postal
Maximum Scan Resolution: 5 mil
Depth of Field:
2.50" - 10"@5 mil - Code 39
0.80" - 16.80"@13 mil - 100% UPC/EAN
0.70" - 28.30"@20 mil - Code 39
1.90" - 11.80"@10 mil - PDF417
2.60" - 12.20"@10 mil - Data Matrix
General Information
Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: DS6707
Product Name: DS6707 DC Barcode Reader
Physical Characteristics
Height: 6.6"
Width: 2.8"
Depth: 4.7"
Color: Black
Weight (Approximate): 6.40 oz
Interfaces/Ports
Host Interface: Multi-interface
Other
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
RoHS Compliant
Medical Electrical Equipment: EN60001-1-2: 2002
Electrical Safety:
UL6950-1
CSA C22.2 No. 60950-1
EN60950-1/IEC60950-1
Laser Safety:
EN60825-1:1994 +A1: 2002 +A2 :2001
IEC60825-1
21CFR1040.10
21CFR1040.11
CDRH Class II
IEC Class 2
EMI/RFI:
FCC Part 15 Class B
ICES-003 Class B
CISPR 22
CISPR 24
