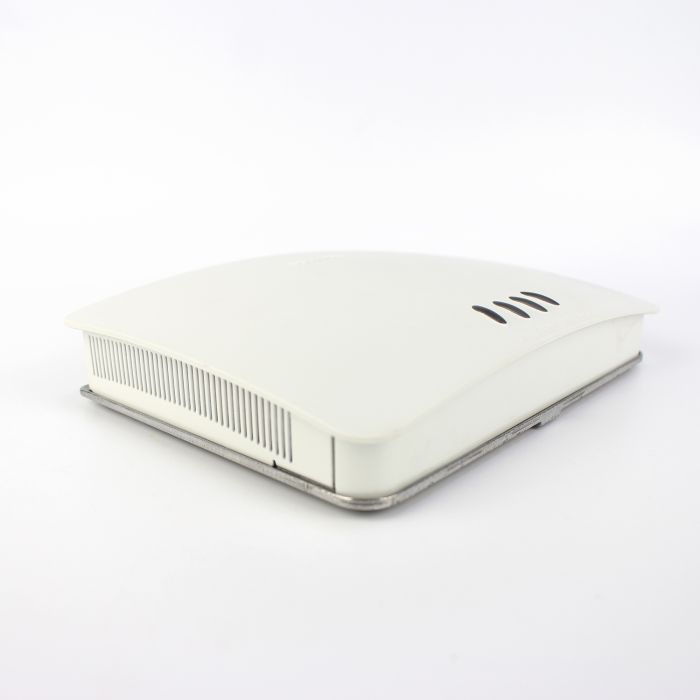

Zebra FX7500 Fixed RFID Reader

The new FX7500 Fixed RFID Reader introduces advanced RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The new radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications.

The result is a fixed RFID reader that sets a new performance standard — delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point.

• Technology: UHF
• Frequency: UHF ETSI 865-868 MHz, UHF Global 860-960 MHz
• Reader Type: Fixed Readers
• Transmit Power Output: 31.5 dBm
• Max Receive Sensitivity: -82 dBm
• Power supply: 802.3af PoE+, 802.3af PoE, AC-DC Power Supply
• Communications: USB, Ethernet (TCP/IP)
• Antenna Ports: 2 Ports, 4 Ports
• ISO: ISO 18000-6C, EPC Class 1 Gen 2
• Operating temperature: -20 °C to 55 °C / -4 °F to 131 °F
