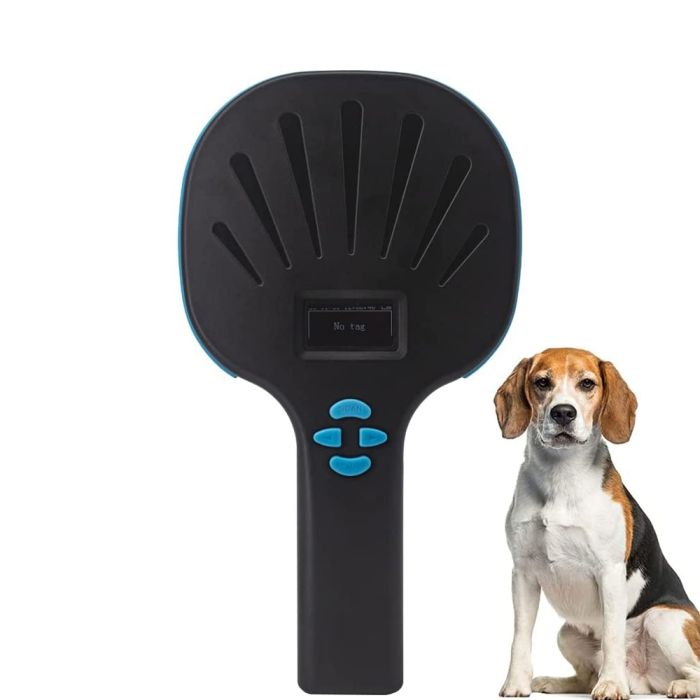

Yanzeo SI300 Handheld RFID Pet Chips Reader Animal Microchip Scanner 134.2 EMID FDX-B ISO11784/85
In stock
SKU
SI300
Quick Overview
● The product uses a high-brightness OLED display, which can be clearly displayed in indoor and outdoor strong light conditions.
● With its own storage function, it can store up to 6000 tags
● Can be uploaded to the computer via USB data cable, wireless, and Bluetooth.
● Supports electronic tags in EMID, FDX-B (ISO1784/85) and conventional barcode/two-dimensional code scanning formats.
● The product performance is stable, the operation is simple, and it is suitable for small animal management, traceability management, warehousing inventory, and material management.
The animal tag reader is an RFID wireless reader that supports electronic tags in EMID, FDX-B (ISO1784/85) and conventional barcode/two-dimensional code scanning formats. The product uses a high-brightness OLED display, which can be clearly displayed in indoor and outdoor strong light conditions. With its own storage function, it can store up to 6000 tags, which can be uploaded to the computer via USB data cable, wireless, and Bluetooth.
Specification
| Operating frequency | 134.2khz/125khz |
| Label format | EMID, FDX-B (ISO11784 / 85) |
| Read/ write rag | 2-12mm glass tube label > 15cm 30mm animal ear mark > 25cm (related to label performance) |
| Standard | ISO11784 / 85 |
| Reading time | < 100ms |
| scan resolution | 640 x 480, pixels |
| Support code system | 1D:UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, Code 39, CodeBar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, Code 93, Code 11 (USD-8), RSS-14 2D:PDF417, QR code, DataMatrix (ECC200) |
| Signal indication | 128*64 high brightness OLED screen, buzzer |
| Power supply | 4.8V (lithium battery) |
| Storage capacity | 6000 pieces of information |
| Communication interface | Type -c, Wireless 2.4G, Bluetooth |
| Working temperature | - 10ºC ~ 50ºC |
| Storage temperature | - 30ºC ~ 70ºC |
| Package size | 28.5cm X 17cm X 5cm |
| Weight | 300g |
Application
The product performance is stable, the operation is simple, and it is suitable for small animal management, traceability management, warehousing inventory, and material management.
