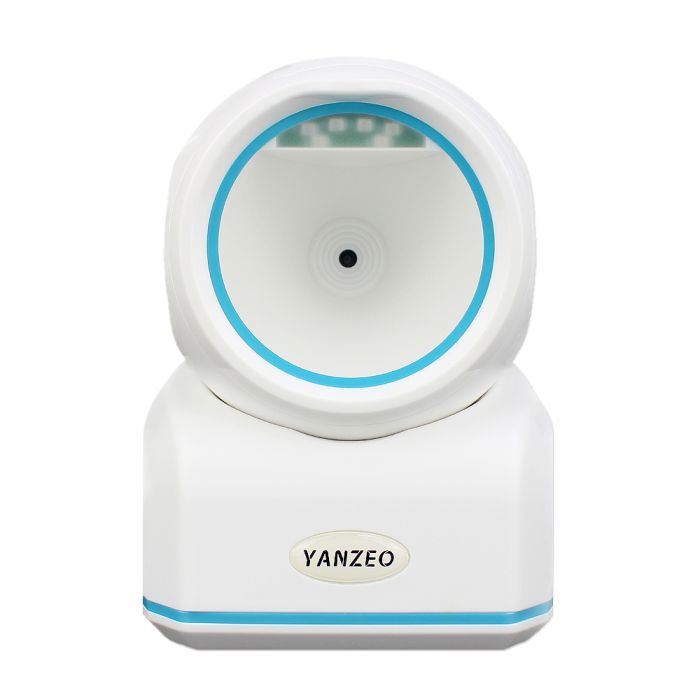

Yanzeo YS867 Desktop Barcode Scanner Omnidirectional Hands-Free 1D/2D QR Bar Code Laser Barcode Scanner Image
In stock
SKU
YS867
Quick Overview
● High Performance 2D Barcode Fixed Platform Scanner
● It can quickly decode and read with high precision, and can effectively resist ambient light interference.
● Fast scanning speed, powerful reading performance and high accuracy
● Decoding Capability: 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS 2D: QR, Data Matrix (DM), PDF417,
● Support mobile phone screen code reading
Model: YS867
Code reading mode: CMOS (global exposure)
Pixel: 640*480 Light source: 617nm red LED
Scanning Mode: Omnidirectional Induction Triggering Scan/Manual/Continuous
Minimum resolution: 0.127mm(5mil) @Code 39, PCS=90%
Use environment: 0°C-50°C
Storage temperature: -20℃~+70℃
Storage humidity: 5%-95% non-condensing
Ambient lighting: 0~8,600Lux (fluorescence) 0~100,000Lux (daylight)
Input voltage: 5VDC±10%
Working current: 175mA
Depth of field angle: 30° V x 48° H (vertical horizontal)
Field of View: 48° (H) x 30° (V) Interface support: USB
Dimensions: 146mm×108mm×98mm
Packing size: 160mm×115mm×115mm
Product weight: about 344g (excluding packaging and accessories)
Gross weight: about 519g
Cable standard: Straight line: 1.8m
Material: ABS+PC
Sealing class: IP54
Drop height: 1.5m
Decoding Capability: 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS
2D: QR, Data Matrix (DM), PDF417, support mobile phone screen code reading
