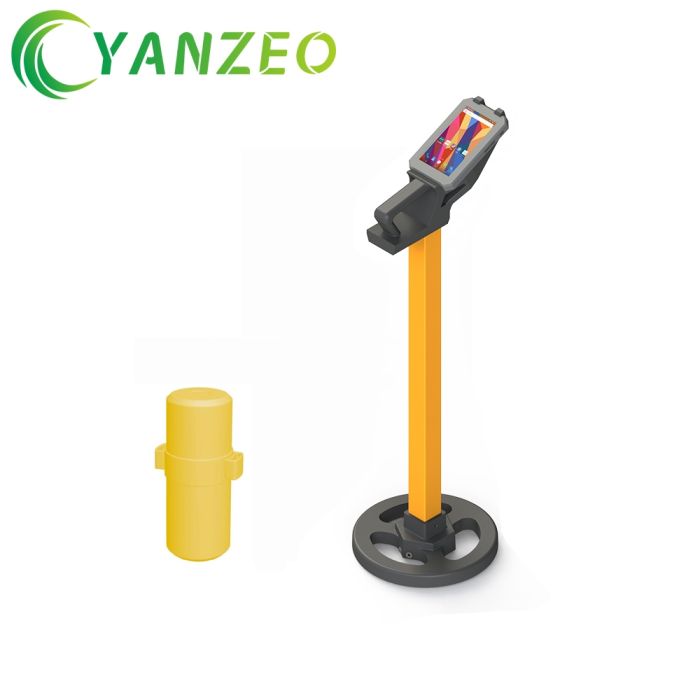

Underground RFID Tag with RFID Detector for Asset Tracking Pipes Oil Gas Tubes
In stock
SKU
Underground RFID Tag
Quick Overview
● This underground RFID tag is a read-only type underground RFID tag.
● Can be buried underground and embedded in walls.
● For cable, pipe marking, etc.
● Using frequency of 125KHz, the product has good penetration, around the barrier ability, identify distance (can 1.8 meter) as far as, free maintenance, etc.
Underground RFID tag:
This underground RFID tag is a read-only type underground RFID tag. Underground RFID tag can be used in cable, pipe marking, etc. It can be buried in the ground and implants wall. Using frequency of 125KHz, the product has good penetration, around the barrier ability, identify distance (can 1.8 meter) as far as, free maintenance, etc.
Mainly has long distance tag and middle distance tag, even if buried in the ground, effective induction distance is about 1.2 meters to 2.5 meters, the production and processing using the RoHS standard, this product coding format for special format, factory has been compiled not to change the global unique identifier (UID).
| Model | Underground RFID tag |
| Clolor | Yellow/blue(can be customized) |
| Material | Nylon |
| Size | dia50mm*136mm |
| Frequency | 125KHz |
| Reading& writing type | Reading only |
| Power | Passive |
| Reading range | Max 2.5 meters(Air- Dielectric) |
| Reading rate | 0.01MS |
| Reading time | 100000 times |
| Durable_Years | >10 years |
| Protocal | ISO11784/ISO11785 |
| Interface | UART, RS232, RS485, etc. |
| Application | Standard read-only type of underground labels, using 125K frequency, with a good penetration, the ability to forgive, identify distance (farthest 2.1 meters), maintenance-free features Application: Underground label is the company according to the market need to develop an underground radio frequency identification label, applied to cable, pipeline marking, can be buried in the underground and implanted in the wall use |
RFID-Tag Detector:
| RFID side parameter | |
| Working frequency | Low frequency 125 KHZ |
| Detection range | Maximum 2.5m (depending on type and environment of use) |
| Data communications | bluetooth |
| Power consumption | Working state:Less than 1000mA; holding state:Less than 10 mA; |
| Battery capacity | 3.7V 18000mAH polymer battery |
| Standby time | 850 hours standby |
| Physical environmental characteristics | |
| Whole machine size | 884mm X 361mm X 300mmm |
| The weight | 2.5 KG |
| Operating temperature | -20ºC ~ 50ºC |
| Storage temperature | -20ºC ~ 70ºC |
| Relative humidity | 5% ~ 95% Noncondensing state |
| Packing standard | IP65 |
| Drop test | 1.2 Free fall |
| ESD performance | Air discharge ±15KV, contact discharge ±8KV |
