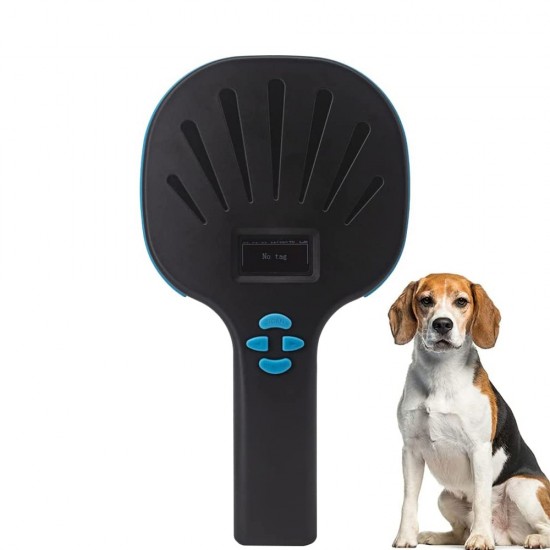

Yanzeo SR300 Handheld RFID Pet Chips Reader Animal Microchip Scanner 134.2 EMID FDX-B ISO11784/85

● The product uses a high-brightness OLED display, which can be clearly displayed in indoor and outdoor strong light conditions.


● With its own storage function, it can store up to 6000 tags


● Can be uploaded to the computer via USB data cable, wireless, and Bluetooth.


● Supports electronic tags in EMID, FDX-B (ISO1784/85) and conventional barcode/two-dimensional code scanning formats.


● The product performance is stable, the operation is simple, and it is suitable for small animal management, traceability management, warehousing inventory, and material management.

Availability: In stock

Call for price.
Details
Details

The animal tag reader is an RFID wireless reader that supports electronic tags in EMID, FDX-B (ISO1784/85) and conventional barcode/two-dimensional code scanning formats. The product uses a high-brightness OLED display, which can be clearly displayed in indoor and outdoor strong light conditions. With its own storage function, it can store up to 6000 tags, which can be uploaded to the computer via USB data cable, wireless, and Bluetooth.

Specification

Operating frequency 134.2khz/125khz
Label format EMID, FDX-B (ISO11784 / 85)
Read/ write rag 2-12mm glass tube label > 15cm
30mm animal ear mark > 25cm (related to label performance)
Standard ISO11784 / 85
Reading time < 100ms
scan resolution 640 x 480, pixels
Support code system 1D:UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, Code 39, CodeBar,
Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128,
Code 93, Code 11 (USD-8), RSS-14
2D:PDF417, QR code, DataMatrix (ECC200)
Signal indication 128*64 high brightness OLED screen, buzzer
Power supply 4.8V (lithium battery)
Storage capacity 6000 pieces of information
Communication interface Type -c, Wireless 2.4G, Bluetooth
Working temperature - 10ºC ~ 50ºC
Storage temperature - 30ºC ~ 70ºC
Package size 28.5cm X 17cm X 5cm
Weight 300g



Application
The product performance is stable, the operation is simple, and it is suitable for small animal management, traceability management, warehousing inventory, and material management.
