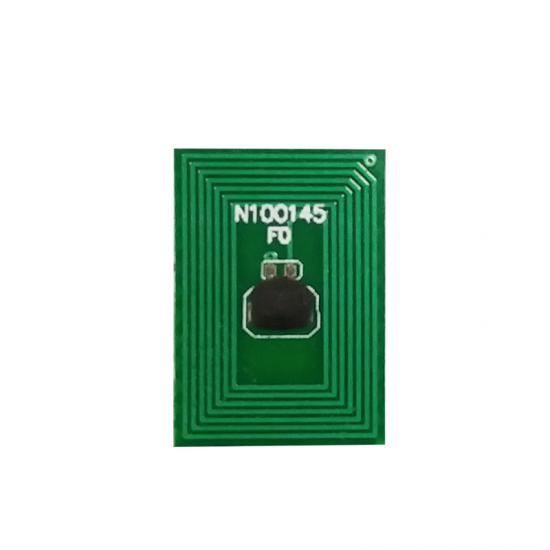

10mm ntag213 Tags Bluetooth Pairing Tag NFC Anti-metal RFID Tag FR4 Material PCB Tag
In stock
SKU
ntag213 Tags
Quick Overview
●Chip: NTAG213, Write times:> 100,000 times
●Support 13.56mhz RFID and NFC IC reader/writer
●Support Smart mobile phones with NFC function.
●Size can be customized, wide application range, high temperature resistance, good weather resistance
●Application areas: Bluetooth speakers, Bluetooth headsets, smart watches, smart bracelets, parameter setting of machine devices, etc.
Performance parameters：
1. Chip: ntag213 (can be customized NXP / Fudan Micro)
2. Operating frequency: 13.56MHz
3. Maximum gain value: 1.5dbm
4. Trigger voltage: cell phone induction NFC output voltage of 0-4V
5. Standard: 14443A , 180 BYTES memory
6. Reading and writing times: >= 100,000 times
7. Service life: >= 10 years
8. Sensing distance: 0~50mm (depending on cell phone NFC signal strength and working environment)
9. Operating temperature range: -20 to 85℃
10. Size: 10x15mm (can be customized)
Application areas.
Bluetooth speakers, Bluetooth headphones, smart watches, smart bracelets, machine equipment and other parameters settings, etc.
Features：
Size can be customized, wide range of applications, high temperature resistance, good weather resistance.
