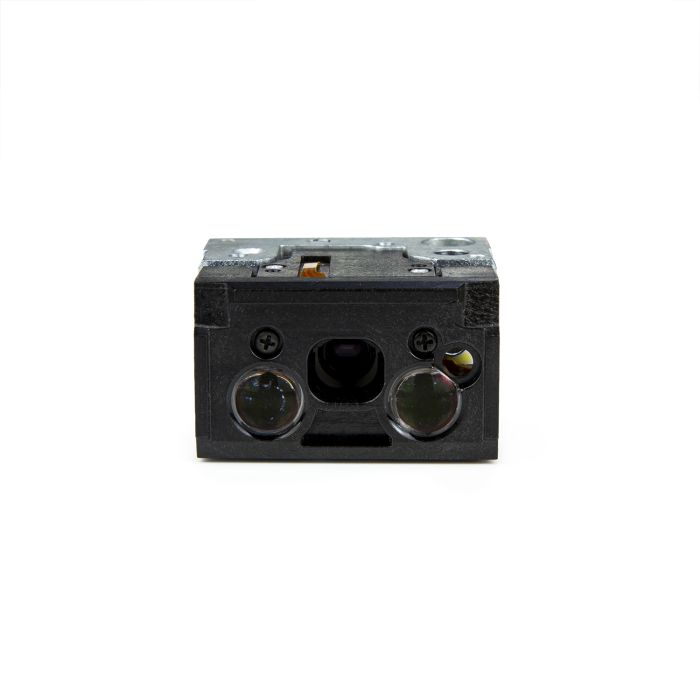

3-150019-21-05 EX25-05 3-150019-21-07 EX25-07 EX25 For INTERMEC SR61 CK3X 2D Laser Barcode Scanner Scan Engine Head Scan Module

● Adaptive barcode scanning range.

● Application flexibility in various industries,

● With good reliability and durability,

● Support data collection technology in complex environment.

● Programmable scan can be custom developed

Availability: In stock

Call for price.

* Required Fields

Details
Details
3-150019-21-05 EX25 EX25-05 For INTERMEC SR61 2D Laser Barcode Scanner Scan Engine Head Scan Module
Place of Origin:Guangdong China (Mainland)
Brand Name: YANZEO
Model Number: EX25-05
Part Number:3-150019-21-05
Name: 2D Scan Engine

1. Product Type: 2D,EX25
2.  For model:Intermec Series Compact Decoded 2D Laser Barcode Scanner

Intermec - EX25 2D Module
Bar Code Reader - OEM Engine

The EX25, Intermec’s latest in data capture technology is a near-far range scan engine, based on area imaging technology. At the product level, this imager solution offers our customers the ability to read both 1D and 2D bar codes, omni-directionally at read distances from 6 inches to 50 feet, and all points in between; to capture images, signatures and documents; and to leverage a new laser pointer to enable more accurate scanning at long distances. This combination of features and capabilities cannot be achieved with the other long range laser scanners on the market.

The EX25 demonstrates Intermec’s commitment to exceed customer and marketplace expectations by constantly innovating. As the first auto-focus 2D imager, the EX25 not only meets, but exceeds the capabilities of long range laser scanning, removing the exclusivity, currently held by long range laser technology, and opening up choice in the marketplace.

The EX25 is well-suited to meet the demands of today, dominated by the need to scan linear bar codes, as well as those of tomorrow with the growing use of 2D codes in many industries.

Features

  • Omnidirectional bar code reading
  • Scan rate of up to 56 scans per second
  • Read range of 150mm to 15 meters
  • Supports all common 1D & 2D barcodes
  • New laser pointer to enable more accurate scanning at long distances
  • Low power 3.3V operation
  • Reliable solid state technology with low power consumption
  • Ideal for integrating into equipment requiring barcode capability
  • 12 month Warranty

Specifications

Mechanical
Dimensions 21 mm (h) x 34 mm (d) x 34 mm (w)
Weight 42g
Environmental
Operating Temp. -20 to 60°C
Storage Temp. -40 to 70°C
Relative Humidity 5% to 95%(non-condensing)
Vibration Random vibration 8G, from 10Hz to 500Hz, 2 hour/axis, 3 axes
Shock 2000G, 0.7ms, half sinus, 3 axes
Electrical
Voltage 3.3 V/DC ±5%
Operating Current 700 mA at 3.3 V scanning
Hibernate Current < 32mA
Optical
Scan Rate Upto56 images per second
Optical Resolution 752 (H) x 480 (V) pixels, 256 gray levels
Scan Angle Horizontal: 20°
Vertical: 20°
Print Contrast Ratio 40% (minimum)
Depth of field 150 mm to 15 m
Symbologies Decoded  Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock A and F, Code 11, Code 39, Code 93/93i, Code 128/ISBT 128/EAN 128, DataMatrix, Dutch Post, EAN.UCC composite, Infomail, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MSI Code, PDF417/MicroPDF417/MacroPDF417 (unbuffered mode), Planet, Plessey, Postnet, QR Code, RSS, Industrial and Standard 2 of 5, Sweden Post, Telepen, TLC39, UPC/EAN/ISBN/ISSN/ISMN/GTIN processing
Communications
Protocol High speed RS232 TTL, SPI (high speed image transfer)
