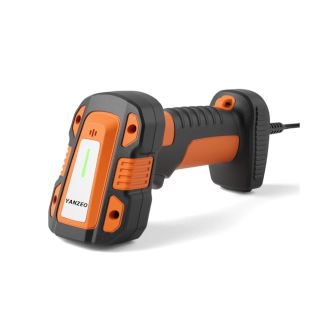

E9820i Bluetooth Rugged Barcode Scanner 1D/2D IP68 Wireless Barcode Reader Used for Warehouse,Logistics,Supermarket
● Bluetooth Wireless Rugged Barcode Scanner
● 1D 2D OCR Customizable barcode recognition program.
● IP68 Industry 4.0 Application Scenarios.
● 3 Years Warranty, Trust Guarantee.
● Used for Warehouse,Logistics,Supermarket
● 1D 2D OCR Customizable barcode recognition program.
● IP68 Industry 4.0 Application Scenarios.
● 3 Years Warranty, Trust Guarantee.
● Used for Warehouse,Logistics,Supermarket
Availability: In stock
Call for price.
Downloads
Details
Details
E9820i Bluetooth Rugged Barcode Scanner 1D/2D IP68 Wireless Barcode Reader Used for Warehouse,Logistics,Supermarket .
Yanzeo E9820i Wireless Rugged Barcode Scanner 1D/2D IP68 Handheld Bluetooth Barcode Reader
Product description
Features
●Cradle and USB dongle are optional.
●Super battery capacity up to 2200mAh.
●Read all 1D and 2D code on screen and paper.
●Communication model: 2.4G, bluetooth and USB-Type-B cable.
●Communication distance (open air): 2.4G:100meters BT: 40meters.
●Charge time is 3 hours and continuous scanning time is 24hours.
●Support double firmware upgrade online: wireless and decoder.
●Three LED indicator : Green(decoder light) Red(charge light), Blue(Connection success).
Application field
Mainly used in business,payment,health care,tobacco,some industries,etc.
Technical Specification
|
OPERATIONAL PARAMETER |
||
|
Image (pixels) |
1280 pixels(H)*800 pixels(v) |
|
|
Light Source |
Aiming:617 nm LED ;illumination:4500K LED |
|
|
Depth of Filed |
40-250mm@UPC/EAN13mil PCS=90%; 20-300mm@QR 20mil PCS=100% |
|
|
EAN-13(13mil) 30-180mm |
||
|
Code39(5mil) 0-90mm |
||
|
Typical Depth of Field |
PDF417(6.67mil) 5-90mm |
|
|
Data Matrix(10mil) 0-60mm |
||
|
QR Code(15mil) 0-130mm |
||
|
Scan Angle |
Elevation angle 65°/Tilt angle 30°/Declination 55° |
|
|
Field of view |
34° horizontal, 28° vertical |
|
|
Read Resolution |
More than 5 mil |
|
|
Print Contrast |
More than 25%
|
|
|
Visual Indicator |
Blue LED Lights , Double Buzzer |
|
|
Interface |
2.4G or Bluetooth or USB cable |
|
|
PHYSICAL CHARACTERISTICS |
||
|
Dimension H x W x L: |
175mm*66mm*90mm(Length x Width x Height) |
|
|
Weight |
220g (with cable) |
|
|
Cable |
Standard 1.8M straight |
|
|
Material |
ABS + PC |
|
|
POWER PARAMETER |
||
|
Input Voltage |
5VDC±10% |
|
|
Working current |
Working current
|
|
|
ENVIRONMENTAL PARAMETER |
||
|
Operating Temperature |
-20℃~+60℃
|
|
|
Working Humidity |
Storage Temperature |
|
|
Storage Temperature |
-40℃~+70℃
|
|
|
Light Levels |
0~100,000Lux(Daylight) |
|
|
Drop Durability |
Designed to withstand 2 Meters drop |
|
|
BARCODE TYPES |
||
|
1D： UPC/EAN/JAN,UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13, |
||
|
ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN |
||
|
128, Code 93, Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code, MSI/ |
||
|
Plessy, China Postal Code,Code 32 (Italian Pharmacode), RSS 14, RSS |
||
|
Limited, RSS Expanded |
||
|
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack, Micro QR,DOTCODE. |
||
Reviews
Tags
You may also be interested in the following product(s)

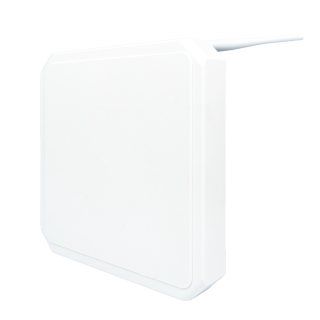

![SR891 40m R2000 Long Range UHF Integrated Reader UDP RJ45 WIFI IP67 Output UHF RFID Reader]()
SR891 40m R2000 Long Range UHF Integrated Reader UDP RJ45 WIFI IP67 Output UHF RFID Reader

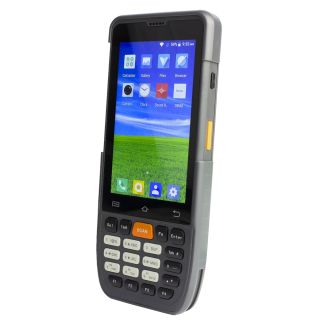

![YANZEO SR1000 2D Barcode Scanner Handheld Android 8.1 PDA Bar Code Reader GPS Mobile Computer]()
